Products Description

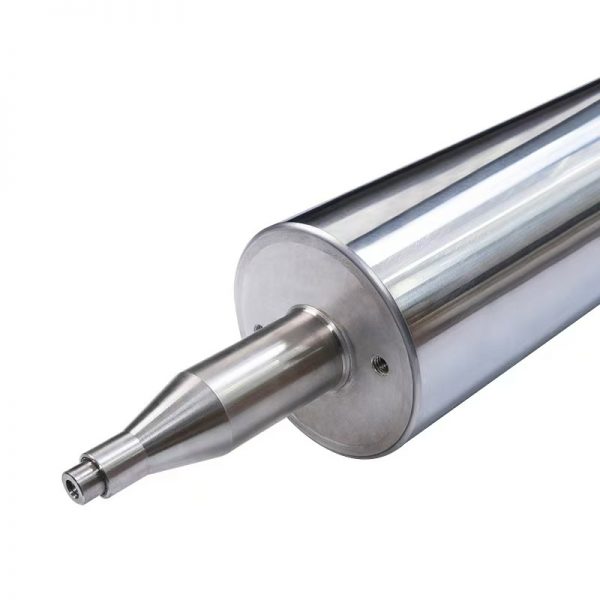

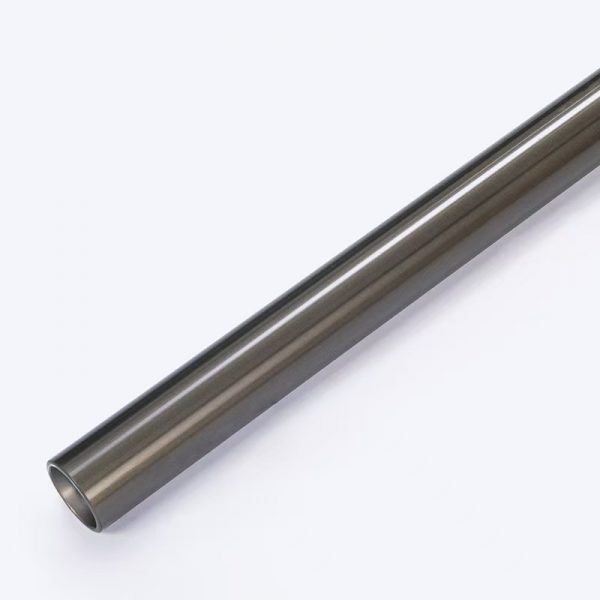

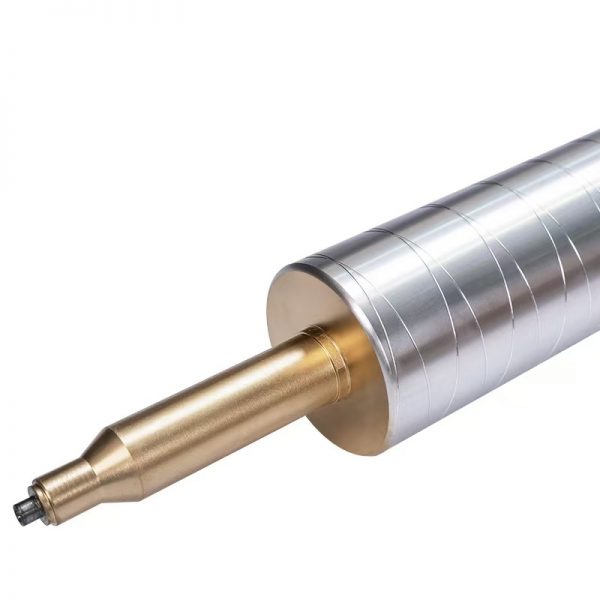

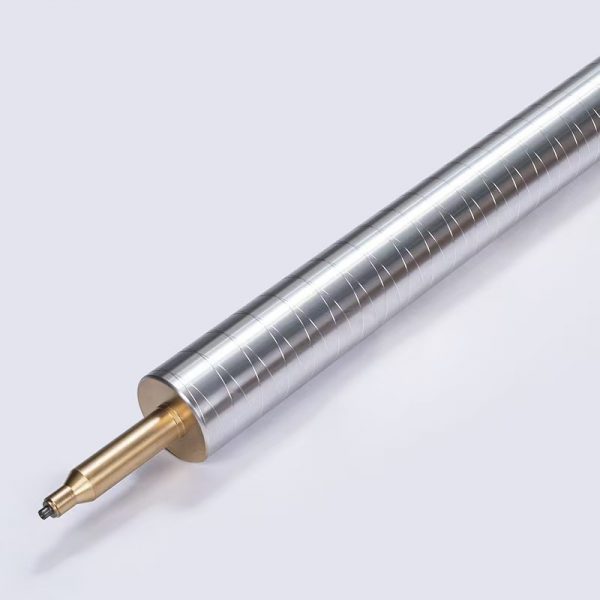

Aluminum guide roller made of high quality aluminum alloy materials,inside is reinforcing rib structure,.it is high strength, low resistance, light weight, flexible rotation, no-rusty, wearable and corrosion resistance. The size of outside diameter is from 22mm to 320mm. Under the cheat by computer balancing correction process, the dynamic balance of the aluminum roller will be small than 5g. With using of sophisticated equipment and special tools, the roller surface gloss can be 0.8 or 0.4, concentricity can reach to 0.02mm. itis especially suitable for printing, packaging, plastics, paper, glass, pharmaceutical, electronics batteries, textile machinery and industries.
|
D(φoutside diameter)
|
inside diameter
|
E(surface thickness)
|
reinforcing rib sign
|
U(the number of
reinforcing rib) |
|
φ22
|
φ15
|
3.50
|
A1
|
|
|
φ25
|
φ18
|
3.50
|
A1
|
|
|
φ28
|
φ22
|
3.00
|
A1
|
|
|
φ30.1
|
φ20.1
|
5.00
|
A1
|
|
|
φ31
|
φ25.2
|
2.90
|
A1
|
|
|
φ33.8
|
φ25.4
|
4.20
|
A1
|
|
|
φ38.2
|
φ30.2
|
4.00
|
A1
|
|
|
φ40.1
|
φ30.1
|
5.00
|
A1
|
|
|
φ42
|
φ33
|
4.50
|
A2
|
3
|
|
φ45.1
|
φ32
|
6.50
|
A1
|
|
|
φ47.1
|
φ41.1
|
3.00
|
A1
|
|
|
φ50
|
φ40
|
5.00
|
A1
|
|
|
φ51.3
|
φ39
|
6.15
|
A2
|
3
|
|
φ52
|
φ44.6
|
3.70
|
A1
|
|
|
φ55
|
φ45
|
5.00
|
A1
|
|
|
φ57.2
|
φ50.2
|
3.50
|
A1
|
|
|
φ60
|
φ50
|
5.00
|
A1
|
|
|
φ61
|
φ51
|
5.00
|
A2
|
6
|
|
φ70
|
φ61
|
4.50
|
A1
|
|
|
φ71
|
φ64.6
|
3.20
|
A2
|
7
|
|
φ72.4
|
φ64
|
4.20
|
A2
|
8
|
|
φ75
|
φ66
|
4.50
|
A1
|
|
|
φ75
|
φ60
|
7.50
|
A1
|
|
|
φ75.6
|
φ69.2
|
3.20
|
A2
|
7
|
|
φ77.4
|
φ70
|
3.70
|
A2
|
9
|
|
φ80
|
φ64
|
8.00
|
A2
|
8
|
|
φ81
|
φ73.2
|
4.00
|
A2
|
7
|
|
φ80.7
|
φ70.3
|
5.10
|
A2
|
9
|
|
φ90.5
|
φ82.9
|
3.80
|
A2
|
9
|
|
φ90.6
|
φ75.6
|
7.50
|
A1
|
|
|
φ101
|
φ92.4
|
4.30
|
A2
|
9
|
|
φ101
|
φ90.2
|
5.40
|
A2
|
9
|
|
φ110.8
|
φ102
|
4.40
|
A2
|
|
|
φ121
|
φ111.6
|
4.70
|
A2
|
9
|
|
φ120.9
|
φ109.1
|
5.90
|
A2
|
9
|
|
φ131
|
φ120
|
5.50
|
A2
|
9
|
|
φ150.5
|
φ136.5
|
7.00
|
A1
|
|
|
φ151
|
φ140
|
5.50
|
A2
|
10
|
|
φ200
|
φ186
|
7.00
|
A1
|
|
|
φ320
|
φ296
|
12.00
|
A1
|
Other attributes
Warranty
1 Year
Applicable Industries
Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops
Weight (KG)
10
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2023
Warranty of core components
1 Year
Core Components
Bearing
Material
aluminum
Place of Origin
Zhejiang, China
Condition
New
Structure
roller
Coatings
standard wooden box package
Model Number
100*1500
Brand Name
WHZ
dynamic balance whithin
5g
surface roughness
0.4/0.8
Concentricity
0.05mm
roller thickness
depend on roller diameter
The number of reinforcing rib
depend on roller diameter
After Warranty Service1
Video technical support
After Warranty Service2
Online support
After Warranty Service3
Spare parts
After Warranty Service4
Field maintenance and repair service
Local Service Location5
None
Packaging and delivery
Packaging Details
Packaging Description:
step1(paper Two Layer/three Layer Package)-step2(standard Wooden Box Package)-step3(depend On Customer Requirement)
step1(paper Two Layer/three Layer Package)-step2(standard Wooden Box Package)-step3(depend On Customer Requirement)
Port
ningbo/shanghai
Supply Ability
Supply Ability
10000 Piece/Pieces per Year
usage industry
FAQ
Q 1.When can I get the quotation?
We usually quoted within 12 hours after receiving your inquiryment.If you are urgented,please whatsappus or email us,we will reply your inquiryment immediately.
Q 2.How should I place an order?
Please send us shaft roller drawings or more requirement,we will write back unit price base on all of your requirements.
Q 3.What’s your MOQ basis?
MOQ depend on customized rollers drawings.normally MOQ≥1.
Q 4.What about the delivery time for production?
Depend on rollers drawings and quantity.normally 7-15 working days after receive deposit.
Q 5.What is the term of shipment?
EXW/FOB/CIF/CFR etc.always follow customer requirement.
