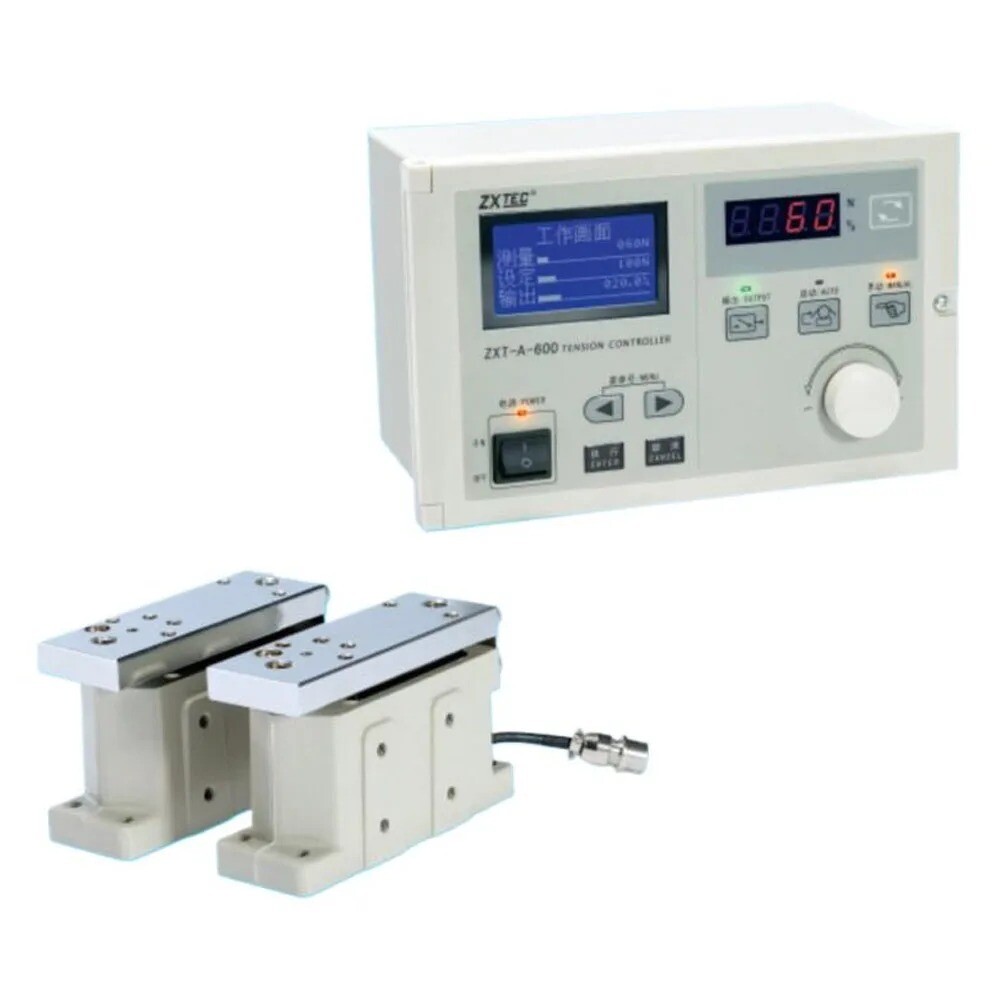

ZXT-A-600 Automatic Tension Controller with Load Cell sensor for Printing Slitting Machine Part

Product Advantages:

ZXT-B full digital high precision automatic constant tension controller, mainly composed of

tension detector, high precision A / D, D / A converter, high performance microcontroller. The

automatic constant tension controller compares the tension of the coil material with the set target

tension according to the tension detector, and automatically adjusts the D/A output by the PID

calculation of the single chip microcomputer to change the magnetic powder clutch, the excitation

current of the brake or the servo motor. The torque is used to achieve the constant tension of the

coil material, and can be widely used in various occasions where the tension is precisely measured

and controlled, and has flexibility and wide applicability.
LCD display can be displayed in Chinese or English
Automatic and manual switching is simple and convenient
Tension detector wiring is simple and convenient
Convenient parameter settings
With double station shaft output function
Product Specifications

Measurement accuracy:<±1 Newton
Sampling speed:100 millisecond
Main output mode:DC 0-2A Constant current output (adapted load impedance 8-12Ω)
Auxiliary output:DC 0-5V(MAX 10MA)Analog signal output
Dimensions:W245×H155×D140(mm)
Installation size:W230×H150×D120(mm)
Power:AC 180-245V 50/60Hz
