| Torsion Force: | 12N-500N | Capacity: | 24v |
|---|---|---|---|
| Current: | 0.5-2.5A | Power: | 7.2-70W |
| Maximum Speed: | 1500 | Weight: | 14-370KG |
| Highlight: |

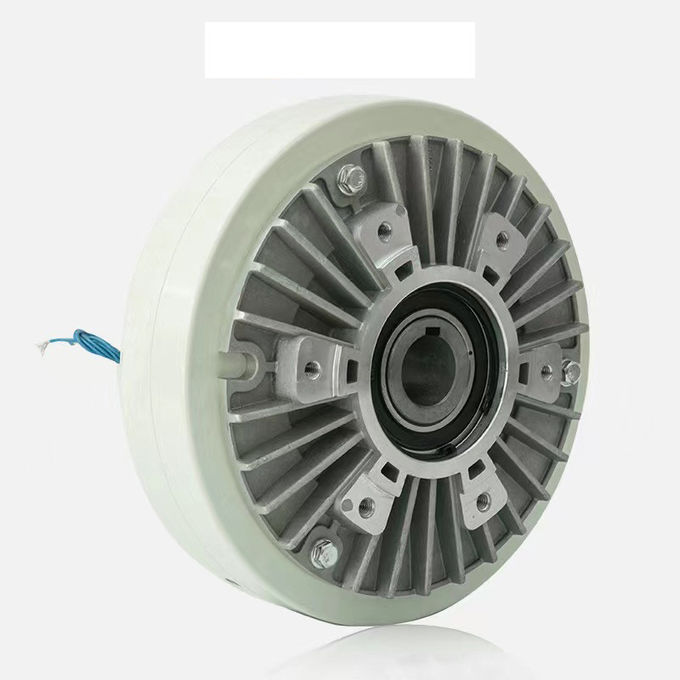

Laminating Magnetic powder brake, Printing Magnetic powder brake, Magnetic powder brake packaging machine parts |
||
Product features
1. It can achieve continuous sliding operation
2. Stable torque can be obtained
3. No beeping sound. The phenomenon of sliding on the action surface may occur in the friction mode, but it does not occur here and does not emit a connecting sound, so the operation is quite quiet
4. The heat capacity is very large. Thanks to the use of heat-resistant magnetic powder and the ideal cooling method, even in extremely harsh continuous sliding operations, it can be used with peace of mind
5. It can be driven to a smooth and continuous state. Due to the almost identical precision friction coefficient and dynamic friction coefficient, there will be no oscillation when fully connected, and the speed can be increased or decreased according to the load
Product Usage
1. Buffered start and stop: Utilize the smoothness and fixed rotation characteristics of the connection to achieve buffered start and stop
2. For continuous sliding and tension control
3. For torque limiters
4. For high-speed response
5. For power absorption
6. Stop using positioning
7. For simulating loads
