Quick Loading/Unloading and Efficiency Improvement Achieve rapid fixation and detachment of roll materials through inflating/deflating operations (only 2-3 seconds), significantly reducing downtime and meeting high-frequency roll change requirements. No complex mechanical operations or tools required, lowering manual labor intensity, especially ideal for automated production lines.

High-Precision Positioning and Consistency After inflation, the shaft tightly adheres to the inner hole of the roll material, ensuring concentricity and uniform tension, preventing misalignment or loosening, and improving finished product quality in processes like printing and coating. Key-type expansion shaft design distributes force application points, balances load pressure, and suits heavy-duty scenarios (e.g., fabric, metal rolls).

Flexibility and Broad Applicability Customizable dimensions (length from hundreds of millimeters to over 6 meters, shaft diameter 1-12 inches), adapts to various roll materials of different thicknesses, widths, and specifications. Applicable to multiple industries including printing, papermaking, packaging, textile, and plastic processing, covering both light and heavy industrial needs.

Durability and Easy Maintenance Utilizes high-quality steel materials and chrome plating for wear and corrosion resistance, ensuring long service life. Modular design with interchangeable components simplifies repairs and reduces costs; routine maintenance involves checking air tightness, cleaning, and lubrication.

High Load-Bearing Capacity Steel materials selected based on requirements enable a single shaft to bear over 1 ton, meeting heavy industrial demands.

With more than 17 years of experience in all areas of modern winding technology, we are the first point of contact in china for pneumatic and pneumo-mechanical air shafts. We offer expansion shafts for every application, friction shafts or adapters. standard solutions or manufactured on customers request.

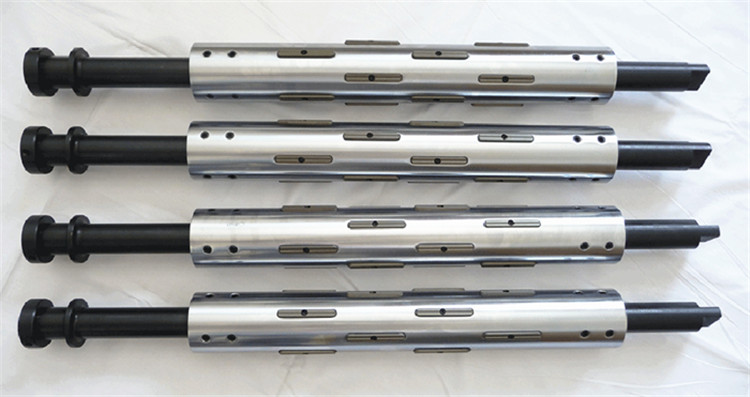

Type:Key type air shaft(steel-made or aluminum made) ,Lath type air shaft,Differential air shaft
Material: No.45 steel/ Aluminum
Length: 0.2m-3.8m

The lightweight aluminium air shafts is the right choice for most standard applications. It is designed for medium web tension and medium coil weight. Due to the aluminium profile design, the air shaft is extremely light and relieves the machine operator during frequent roll changes. The pneumatic clamping shaft expands by a flat hose system. The continuous clamping bars are very protective to the cores and allow even a winding of multiple cores.

Due to its construction and the central tube system, this winding shaft is the most customisable. Depending on its design, it can withstand very high loads and is therefore a real high-performance air shaft. Even a carbon fibre body is possible in case a very low dead weight is required. The shafts expansion elements are expanding by a central rubber hose.

1.When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.
2.How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmisson parts.
For air shafts,air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3.What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.
4.What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller,which is about 3-5 days. For safety chucks, air shafts which need about 15-30days.
5.What is the term of shipment ?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
More concerned for our products , please do not hesitate to inquiry now!
