DC24V Tension Controller Ultra Thin Hollow Axis Magnetic Powder Brake PB-B3-0.3 (3Nm) PB-B3-0.6 (6Nm) for Winder and Rewinder

By
DC24V Tension Controller Ultra Thin Hollow Axis Magnetic Powder Brake PB-B3-0.3 (3Nm) PB-B3-0.6 (6Nm) for Winder and Rewinder
DC24V Tension Controller Ultra Thin Hollow Axis Magnetic Powder Brake PB-B3-0.3 (3Nm) PB-B3-0.6 (6Nm) for Winder and Rewinder - Image 2
DC24V Tension Controller Ultra Thin Hollow Axis Magnetic Powder Brake PB-B3-0.3 (3Nm) PB-B3-0.6 (6Nm) for Winder and Rewinder - Image 3
DC24V Tension Controller Ultra Thin Hollow Axis Magnetic Powder Brake PB-B3-0.3 (3Nm) PB-B3-0.6 (6Nm) for Winder and Rewinder - Image 4

$288.00

Magnetic particle brake, single shaft, rated torque can select 6Nm, 12Nm, 25Nm, 50Nm, 100Nm, 200Nm or 400Nm, maximum rated speed of 1800rpm, with maintain, braking, buffer start, tension control and torque limit. Electric brake has the advantages of quick response, simple structure, no shock vibration and energy saving. Manufacturer direct sales.

Magnetic powder brake rated torque 3Nm, 50Nm, 100Nm, 200Nm, 400Nm are avaliable, overload protection, speed adjustment, can be used in textile industry, printing and dyeing, manufacturer direct sale.

Magnetic Particle Brake Features
1. The excitation current is linear with the torque. The transmitted torque is substantially linear with the excitation current. As long as the magnitude of the stimulation current is changed, the magnitude of the torque can be controlled over a wide range. In general, the stimulus current is substantially proportional to the transmitted torque in the range of 5%-100% of the rated torque.
2. Stable slip torque. When the stimulation current remains unchanged, the transmitted torque is not affected by the difference in rotational speed between the active and the driven, that is, there is no difference between the static friction torque and the dynamic friction torque, so that the torque can be stably achieved. This feature is applied to the tension control, and the user can accurately control the torque by adjusting the stimulation current, thereby effectively controlling the tension of the roll.
3. Prevent heat generation due to slip. Generally, the friction part is inevitably heated or even burned when continuously sliding. However, the ATO magnetic powder brake has a complete heat sink, which will not be too hot for a long time and has a long service life.

Magnetic Particle Brake Specification:

Model ATO-PB-003 ATO-PB-006 ATO-PB-015 ATO-PB-025 ATO-PB-050 ATO-PB-100 ATO-PB-200 ATO-PB-400
Rated Torque 3Nm 6Nm 15Nm 25Nm 50Nm 100Nm 200Nm 400Nm
Rated Current 0.53A 0.81A 0.94A 1.24A 2.15A 2.4A 2.7A 3.5A
Rated Voltage DC24V
Power 12.7W 19.4W 22.5W 30W 51.5W 57.6W 64.8W 84W
No. of Hour Set 0.08S 0.08S 0.1S 0.12S 0.13S 0.25S 0.37S 0.4S
Moment of Interial 3.00*10-4 Kgcm2 6.0*10-4 Kgcm2 1.34*10-3 Kgcm2 3.8*10-3 Kgcm2 9.5*10-3 Kgcm2 3.5*10-2 Kgcm2 9.15*10-2 Kgcm2 2.4*10-1 Kgcm2
Air Pressure / 3*104 Pa 3*104 Pa 5*104 Pa 1*105 Pa 6*104 Pa 5*104 Pa 2*105 Pa
Air Volume / 0.2m³/min 0.2m³/min 0.4m³/min 0.6m³/min 1.1m³/min 1.6m³/min 2.0m³/min
Slip Power / 110W 250W 380W 700W 1100W 1900W 2800W
Weight 2.0kg 2.1kg 4.5kg 7.6kg 12.5kg 34kg 45kg 90kg
Maximum Speed 1800 r/min
Weight of powder 7.5g 10g 20g 33g 60g 140g 225g 370g

3Nm-400Nm Magnetic Particle Brake Dimension (unit: mm)

Magnetic particle brake size

Model ATO-PB-003 ATO-PB-006 ATO-PB-015 ATO-PB-025 ATO-PB-050 ATO-PB-100  ATO-PB-200  ATO-PB-400
D1 120 125 152 182 219 278 327 395
D2 75 110 126 160 196 260 301 365
D3 (g7) 42 42 42 55 74 100 110 130
D4 64 64 64 78 100 140 150 200
L 106 112.5 132 157 192 239 270.5 338
L1 22 25 29 43 55 65 69 92
L2 78 80.5 98 108 131 167 191.5 226
L3 11 11 15 17 30 28 30 35
L4 14 17 25.5 26 28 46 56 70
L5 12 12 14.5 15 18 21.5 32 40
d (h7) (shaft diameter) 10 12 15 20 25 30 35 45
T (-0-0.2) (Contains key) 11.5 13.5 17 22 28 33 38.5 48.5
W (P7) 4 5 7 10 12
V M3*0.6P*6L M4*0.7P*8L M6*1P*12L M10*1.5P*20L
R 6-M5*0.8P*10L 6-M6*1P*10L 6-M10*1.5P*20L 6-M10*1.5P*15L
S / 1/8 1/4 3/8

Details

Magnetic Particle Brake,Single Shaft, Details

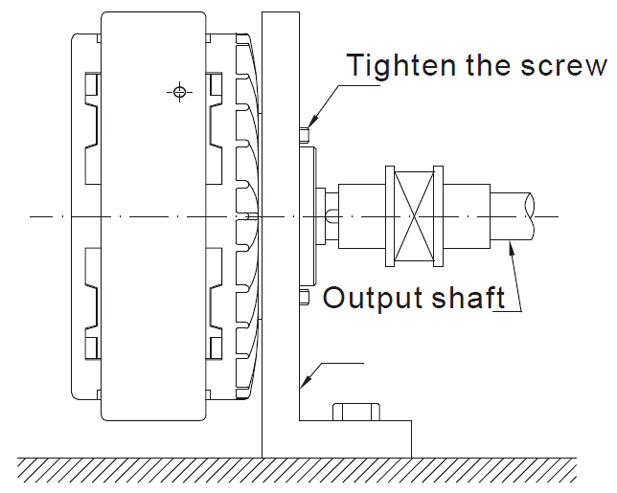

Single Shaft Magnetic Powder Brake Installation

Magnetic particle brake installation
Magnetic Powder Brake Application
Magnetic powder brake appication

Tips: Magnetic Particle Brake Main Applications
Magnetic powder brake have been widely used in paper making, printing, plastic items, rubber industry, textile industry, printing and dyeing, wire and cable, metallurgy industry and tension control of winding and unwinding in roll material processing industry. Moreover, ATO magnetic powder brake can be also used in buffering start, test loading and braking of the transmission machinery, overload protection, speed adjustment.
