| Max Width Mother Roll: | 1100mm | Min Width Finished Roll: | 30mm |
|---|---|---|---|
| Max Diameter Mother Roll: | 1200mm | Max Diameter Finished Roll: | 1000mm |
| Max Mother Roll Weight: | 1200KG | Speed Of Slitting: | 0-350/min |
| Slitting Capability: | 80-200gsm | Rewinding Way: | Central&surface |
| Precision: | ±0.2mm | Speed Regulation Control: | Frequency Converter |
| Power Input: | 380V,50HZ,3PH | Dimension: | 3600*3300*1900 |
| Total Weight: | 4000KG | ||
| Highlight: |
Aluminum Foil slitting and rewinding equipment, 1200mm slitting and rewinding equipment, 1100 Type slitting equipment |
||

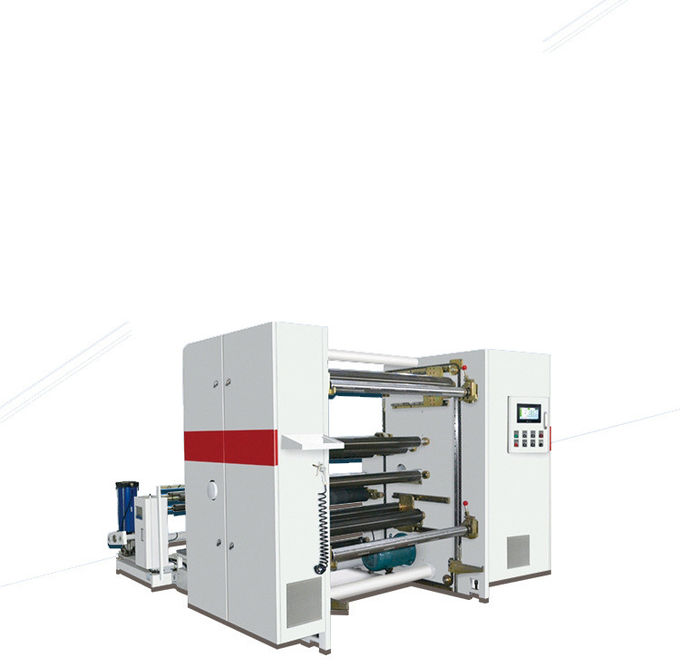

1100 Type Fully Automatic High-Speed Slitting Machine Roll Paper, Aluminum Foil Slitting And Rewinding Machine
Use；
The WZFQ-1300A Slitter Rewinding Machine suitable for Printing&Packaging Industry, converting jumbo roll to narrow roll(The minimum width 30mm , the maximum diameter 1000mm).Jumbo roll material, such as cardboard paper ,kraft paper,coated paper etc slitting & rewinding.
Characteristic:
- PLC controlling system make the machine having an intelligent operation. Machine using three sets motors control keep the rewinding roll with high precision. Automatic tension control system. Center&Surface Rewinding Type make the rewinding roll compact and slitting surface is very smooth.
- Machine use frequency converter adjust speed, keep stable running when speed go up.
- Automatic count meter, automatic alarm and stop when the roll reach the setting diameter or length.
- Rewinding shaft use two pcs air shaft structure,finished rewinding rolls automatic unloading device.
- Round blade knife slitting the material, blade knife freely adjustment by manual,and waste material take out by fan
- Web material edge position automatic correct(EPC system)
- Automatic cylinder shaft mother roll unwinding structure/hydraulic shaft-less mother roll unwinding structure(optional)
-
Technical parameter Max width mother roll 1300mm Min width finished roll 30mm Max diameter mother roll 1400mm Max diameter finished roll 1000mm Max mother roll weight 1200KG Speed of slitting 0-300/min Slitting capability 80-200gsm Rewinding way Central&surface Precision ±0.2mm Speed regulation control Frequency converter Power input 380V,50HZ,3PH Dimension 3600*3300*1900 Total weight 4000KG - WHY CHOOSE US:
1. We have over 15 years of experience
2. We are a manufacturer exporting to over 15 countries
3. Strong production capacity to ensure timely delivery
4. We guarantee product quality and pre-sales and after-sales service
Packaging and Transportation
Packaging details: packed with pearl cotton and plastic film, some items are packed in wooden boxes
Delivery time: Within 30-60 days after payment
Frequently asked Question
Q 1: Where is your factory located? How can I get there?
Answer: Our factory is located in Wenzhou, Zhejiang Province, China. The nearest airport is Wenzhou Airport, and we can pick you up at the airport
40 minutes by plane from Shanghai and 4 hours by train
It takes 2 hours by plane from Guangzhou
Q 2: Does your company provide installation services for foreign machines
Answer: We have a strong service team that can provide foreign installation services and engineer training services for all machines purchased from our company. But the buyer needs to provide airfare, food, hotel expenses, etc
Q3: How does your company provide after-sales service
Answer: The warranty period for all machines purchased from our company is one year (excluding any human error). Lifetime maintenance and 24-hour hotline
