| Max Width Mother Roll: | 1000mm | Max Diameter Mother RollMax Diameter Mother Roll: | 1400mm |
|---|---|---|---|
| Max Mother Roll Weigh: | 1000KG | Cutting Speed: | 50-150 Times/min |
| Cutting Type: | Guillotine Knife | Cutting Length: | 20-2000mm |
| Cutting Capability: | 20-300g | Precision: | ±0.2mm |
| Speed Regulation Control: | Frequency Converter | Total Power: | 7KW |
| Power Input: | 380V,50HZ,3PH | Dimension: | 5400*1900*1400 |
| Total Weight: | 3000KG | ||
| Highlight: |
1000 Type Transverse Cutting Machine, 1400mm Transverse Cutting Machine, 1000mm Transverse Cutting Machine |
||

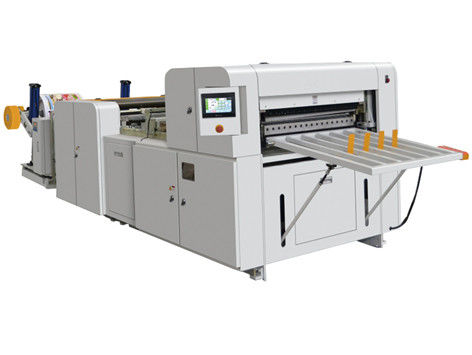

Picture only reference
Usage:
The model machine suitable converting jumbo roll to sheets.It can cut cardboard paper,craft paper,coated paper,plastic film,printed material and so on.
Performance And Characteristics
We adopt servo motor to control the length of cutting, This machine has electric and pneumatic control system, easy operating, high precision in cutting, working stable, low-noise. Frequency converter control motor speed with stable running, automatic counting, alarm and automatic-stop, Full automatic tension control. Web edge position automatic correct control by EPC system. Waste edge is blowing by fan automatically.
- Adopts pneumatic shaft materials loading system with much easy operation and convenience.
- It adopts servo motor for controlling constant-length cutting(precision:±0.2mm)
- It adopts Japanese Panasonic PLC control, Taiwan Weinveiw touching panel (screen operation).
- The machine can add slit knife and color photo eye(color tracking sensor) for after printing web
| Technical parameter | |
| Max width mother roll | 1100mm |
| Max diameter mother roll | 1400mm |
| Max mother roll weight | 1000kg |
| Cutting speed | 50-150times/min |
| Cutting type | Guillotine knife |
| Cutting length | 20-1000mm |
| Cutting capability | 20-300gsm |
| Precision | ±0.2mm |
| Speed regulation control | Frequency converter |
| Total Power | 7KW |
| Power input | 380V,50HZ,3PH |
| Dimension | 5400*1900*1400 |
| Total weight | 3000KG |
WHY CHOOSE US:
1. We have over 15 years of experience
2. We are a manufacturer exporting to over 15 countries
3. Strong production capacity to ensure timely delivery
4. We guarantee product quality and pre-sales and after-sales service
Packaging and Transportation
Packaging details: packed with pearl cotton and plastic film, some items are packed in wooden boxes
Delivery time: Within 30-60 days after payment
Frequently asked Question
Q 1: Where is your factory located? How can I get there?
Answer: Our factory is located in Wenzhou, Zhejiang Province, China. The nearest airport is Wenzhou Airport, and we can pick you up at the airport
40 minutes by plane from Shanghai and 4 hours by train
It takes 2 hours by plane from Guangzhou
Q 2: Does your company provide installation services for foreign machines
Answer: We have a strong service team that can provide foreign installation services and engineer training services for all machines purchased from our company. But the buyer needs to provide airfare, food, hotel expenses, etc
Q3: How does your company provide after-sales service
